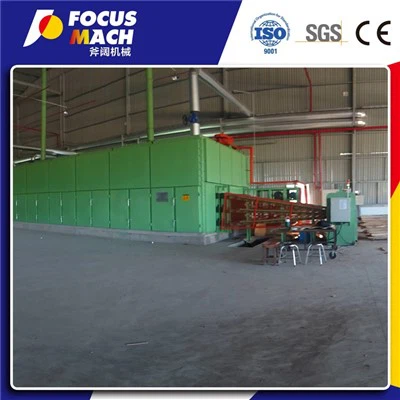

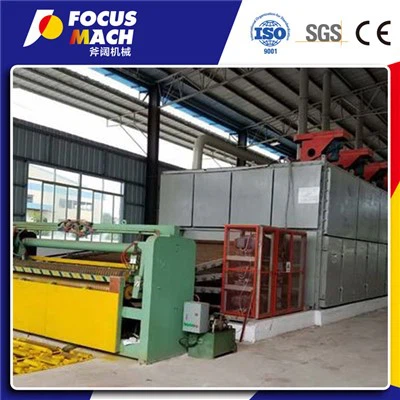

Wood Veneer Tshuab ziab khaub ncaws rau Plywood / Veneer Factory yog ib qho tseem ceeb ntawm cov khoom siv uas ua lub luag haujlwm tseem ceeb hauv cov txheej txheem tsim plywood. Nws tshwj xeeb tsim ua haujlwm rau ziab tev veneers ua rau nws tseem ceeb hauv kev ua kom zoo thiab ua haujlwm ntev ntawm cov khoom kawg. Lub tshuab ntau yam no muaj ntau yam kev teeb tsa, suav nrog mesh, cov menyuam, thiab mesh & cov menyuam hom, uas tuaj yeem hloov kho kom tau raws li cov kev xav tau tshwj xeeb. Lub peev xwm los lis veneers ntawm txawv thicknesses thiab ya raws ntawm txhua hom ntoo showcases nws adaptability thiab kev ntseeg siab nyob rau hauv ntau ntau yam xav tau kev pab. Nrog rau kev tsom mus rau kev ua tau zoo thiab kev txuag hluav taws xob, lub tshuab ziab khaub ncaws no tsis yog tsuas yog pab txuag nqi tab sis kuj txo qhov cuam tshuam ib puag ncig. Kev koom ua ke ntawm cov thev naus laus zis tshiab thiab kev tswj hwm qib siab PLC ua kom pom kev ua haujlwm zoo, muab cov neeg ua haujlwm nrog kev tswj xyuas meej ntawm cov txheej txheem ziab. Tsis tas li ntawd, kev txhim kho veneer zoo ua tiav los ntawm lub tshuab no txhim kho kev zoo nkauj tag nrho thiab kev ncaj ncees ntawm cov khoom plywood. Txawm hais tias nws ua raws li qhov xav tau ntawm cov txheej txheem ua haujlwm kom muaj nuj nqis lossis ua tau raws li qhov xav tau tshwj xeeb ziab, lub tshuab no tuaj yeem tsim kho kom haum rau ntau qhov xwm txheej. Hauv kev xaus, Wood Veneer Tshuab ziab khaub ncaws sawv ua lub hauv paus hauv kev tsim cov plywood niaj hnub vim nws muaj ntau yam, kev ua tau zoo-txhim kho cov yam ntxwv, thiab kev cog lus kom xa cov khoom zoo qhuav veneers rau kev ua tiav rau hauv cov khoom siv plywood saum toj kawg nkaus.
|
Ua haujlwm dav |
2800 hli |
3400 hli |
3500 hli |
|
Cov txheej txheem ua haujlwm |
3 |
2 |
4 |
|
Ntev ntawm cua sov seem |
20000 hli |
13 × 2000mm =26000 hli |
15×2000=30000 |
|
Ntev ntawm qhov txias txias |
6000 hli |
3 × 2000=6000 hli |
2×2000=4000 |
|
Tag nrho lub zog |
155.7 qw |
128.5 kwm |
280.2 qw |
|
Tsheb thauj mus los |
7.5kw × 2.5kw |
11kw × 2=22kw |
18.5kw × 2=37kw |
|
Cua sov lub cev muaj zog |
11kw × 10=110kw |
7.5kw × 2.5kw |
15kw × 15=225kw |
|
Lub tshuab cua txias |
4kw × 3+3kw × 3=21kw |
3kw × 3=9kw |
4kw × 2+4kw × 2=16kw |
|
Tso zis zog |
2.2kw × 1=2.2kw |
2.2kw × 1=2.2kw |
2.2kw × 1=2.2kw |
|
Veneer kev thauj mus los ceev |
1.5 ~ 15m / min |
1.5 ~ 15m / min |
1.5 ~ 15m / min |
|
Saturated chav siab |
{{0}}.6 ~ 1.0Mpa |
{{0}}.6 ~ 1.0Mpa |
{{0}}.6 ~ 1.0Mpa |
|
Qhuav kub |
150~170ºC |
150~170 ºC/170-190 ºC |
170-190ºC |
|
Chav noj |
3300kg / h |
3000kg / h |
3600kg / h |
|
Veneer ceev |
~ 620kg / m³ |
~ 620kg / m³ |
~ 590kg / m³ |
|
Muaj veneer thickness |
1.5 ~ 3.5 hli |
1.5 ~ 3.5 hli |
1.5 ~ 4.5 hli |
|
Veneer pib ya raws cov ntsiab lus |
~80% |
~80% |
50-60% |
|
Veneer kawg noo noo cov ntsiab lus |
6±2% |
6±2% |
10-20% |
|
Load ratio |
85% |
85% |
85% |
|
Qhuav muaj peev xwm |
2.6~2.9m³/h |
2.5~2.8m³/h |
~6.7m³/h |
|
Cov menyuam sib nrug |
3 33mm |
3 33mm |
3 33mm |
|
Zuag qhia tag nrho (L * W * H) |
45620 × 5150 × 4150mm |
43820 × 5050 × 2800mm |
52720 × 5850 × 4720mm |
|
Tag nrho qhov hnyav |
~ 79000kg |
~73000 |
~132000 |
Cov duab khoom
Ntim & Shipping
Cov ntaub ntawv tuam txhab
Vim Li Cas Xaiv Peb
(1) Lasering koj lub logo ntawm cov khoom thiab tsim lub logo yog dawb
(2) Lub sij hawm xa tuaj hauv 30 hnub
(3) Tsis muaj nqi ntxiv
(4) MOQ Ntau dua lossis sib npaug rau 1
(5) Muab cov khoom hais tawm
(6) Muab kev pabcuam ntim khoom customization
(7) Txhawb Wechat / Email / Whatsapp
(8) Peb tshwj xeeb hauv daim teb no rau 30 xyoo kev tsim khoom thiab 10 xyoo kev xa tawm
(9) Zoo heev tom qab-muag system
Cim npe nrov: Tuam Tshoj wood veneer tshuab ziab khaub ncaws manufacturers, lwm tus neeg, Hoobkas
