Khoom Description

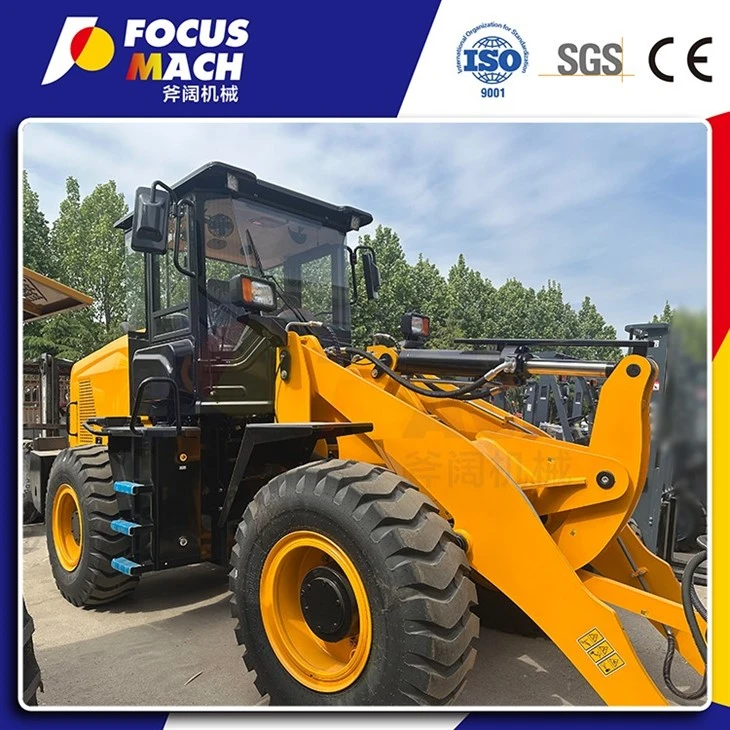

Lub cav grabber no yog tsim los ntawm lub chassis ntsuas rau 8,000 kg tshuab load peev. WP6G125 6-litre diesel cav tsim 92 kW ntawm lub zog. Lub TR-100 tsau ncej powershift kis tau tus mob muab F4/R2 gearing nrog ib zaug xwb-theem peb-element torque converter rau du zog xa. Lub tshuab hydraulic siv ob lub twj tso kua mis CBGJ2100 (ua haujlwm thiab hoist) thiab ib lub twj tso kua mis E550 (steering), ua haujlwm los ntawm D25-18 valve thiab 80-40 lub tog raj kheej ntawm 16 MPa steering siab. Lub coaxial flow amplification steering system muab kev tswj kom meej. Plaub huab cua-dhau-hydraulic caliper disc brakes tuav kev pabcuam braking, thaum lub khau sab hauv nthuav dav ua haujlwm nres nres. Lub tshuab caij 175R24 log tsheb.
YS8 hoist muab 8,000 kg lifting peev nrog 1,200 mm nqa qhov siab siv Φ20 hlau hlua. Lub CZ-100 tsav qag hloov lub zog rau lub log.
Khoom Parameters
| Tsis muaj. | Yam khoom | Parameter |
|---|---|---|
| 1 | Rated Load Capacity ntawm Tshuab | 8 000 kg |
| 2 | Hoist Nameplate Qauv | YS 8 |
| 3 | Lifting peev | 8 000 kg |
| 4 | Lifting Qhov siab | 1200 hli |
| 5 | Hlau hlua Specification | Φ20 |
| 6 | Hom kis kab mob | Tsau Shaft Fais Fab Hloov |
| 7 | Hloov Gears | F4/R2 |
| 8 | Qauv kis tau tus mob | TSI-100 |
| 9 | Torque Converter Hom | Tib -theem Peb- ntsiab |
| 10 | Cav Qauv | WP6G125 |
| 11 | Rated zog | 92 kW ua |
| 12 | Kev khiav tawm | 6 L |
| 13 | Kev Pabcuam Nres Hom | Huab cua- hla -hydraulic Caliper Disc |
| 14 | Nres Nres Hom | Internal Expanding Khau |
| 15 | Tus naj npawb ntawm Brake Calipers | 4 |
| 16 | Tyre Model & Ply Rating | 175R24 |
| 17 | Steering Hydraulic System Hom | Coaxial Flow Amplification |
| 18 | Steering System Siab | 16 MPa |
| 19 | Hydraulic Pump (ua haujlwm) | SIB 2100 |
| 20 | Hydraulic Pump (Steering) | E550 |
| 21 | Hydraulic twj tso kua mis (Hoist) | SIB 2100 |
| 22 | Valve | D25-18 |
| 23 | Hydraulic Lub tog raj kheej | 80-40 |
| 24 | Hose | Kho tau |
| 25 | Tsav Axle | CZ-100 |
Cov yam ntxwv tseem ceeb
- 8,000 kg tshuab- ntsuas qhov peev xwm
- WP6G 125 92 kW diesel cav (6L hloov chaw)
- TR-100 powershift kis tau tus mob - F4 / R2
- YS8 hoist nrog 8,000 kg lifting peev
- Plaub cua- hla- hydraulic caliper disc nres
- Coaxial flow amplification steering ntawm 16 MPa
- 175R24 log tsheb
- CZ-100 tsav qag
Vim li cas thiaj xaiv lub tshuab no
Qhov no log grabber qhia nws lub chassis nrog cov skidder sib xws, lub ntsiab lus ntawm qhov sib xws thoob plaws koj lub nkoj yog siab. Lub 8,000 kg rated load muaj peev xwm tshaj 3-tuj kev khiav hauj lwm chav kawm, muab ib tug kev nyab xeeb margin rau tawv nqa. Cov ncej ruaj ruaj powershift kis tau tus mob yog pov thawj ruaj nyob rau hauv cov ntawv thov hav zoov nrog nquag poob siab loading. Plaub caliper disc brakes muab kev ruaj ntseg nres lub zog ntawm qhov chaw ntub dej lossis av nkos.
